6-metrski aluminijasti oglasni drog

vertical_align_bottom Navodila za sestavljanje vertical_align_bottom Tehnične specifikacije
vertical_align_bottom Predloga vertical_align_bottom Navodila za oblikovanje
  1. Ukrep
    1M
    1,2M
    1,5M
  2. Izberite količino
  3. Cene (Brezplačen prevoz)

    Cene so na voljo izključno za registrirane distributerje

6-metrski aluminijasti oglasni drog

Glavna značilnost oglaševalnega droga je, da ima električno roko, ki omogoča, da se oglasni transparent v celoti navpično razvije, kar poveča njegovo vidnost. Z impresivno višino 6 metrov vam bo naš drog omogočil impresiven prikaz vaših oglasnih sporočil. Pritegnite poglede potencialnih strank in ustvarite večjo prepoznavnost blagovne znamke s tem močnim promocijskim medijem.

Vsebina

Oglaševalski jambor ima vse, kar potrebujete za namestitev in montažo, vključno z:

  • Anodiziran aluminijast jambor.
  • Trikotna pocinkana jeklena osnova.
  • Vključena dodatna oprema (vrtljivi sistem, protiutež in prirobnica)
  • Zastava ni vključena.

Dimenzija jambora

Stolp je visok 6 metrov in ima premer 6,5 cm. Sestavljen je iz dveh aluminijastih delov, ki sta med seboj vodotesno povezana.

Dimenzije električnih ročic

Na voljo v treh dolžinah: 1 meter, 1,2 metra ali 1,5 metra. Vse s premerom približno 2 cm in debelino 1,8 mm. Za čim boljšo uporabo tega drogov za zastavo priporočamo vertikalno oglaševalsko zastavo s podstavki in trakovi ter vertikalno zastavo s podstavki in ušesi.

Feature

Description

Composition

Anodized aluminium with performance parameters PN-EN 755-2, 6063T66 with Al/An 15 µm class 3 anti-corrosion protection.

Dimensions

Pole (2 sections):

Height Diameter Thickness
Complete pole 6000 mm - -
Bottom section 3300 mm 65 mm 2.5 mm
Top section 3000 mm 50 mm 2 mm

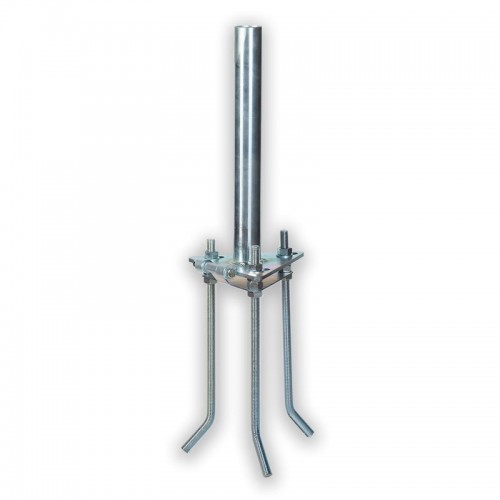

Triangular base:

Triangular iron base with 3 ground anchoring bolts, 50 cm long and 1.5 cm in diameter. It includes a hinge allowing the pole to be lowered for easy installation of the flag.

Included accessories

This horizontal flagpole comes with all the parts needed for assembly, included in the price. These accessories include:

- Rope. White nylon, weather resistant. Length between 16 and 20 metres.

- Halyard system. Mechanism that allows the flag to be hoisted by pulling the rope. Already installed in the top section, it includes a thread where the finial is screwed in.

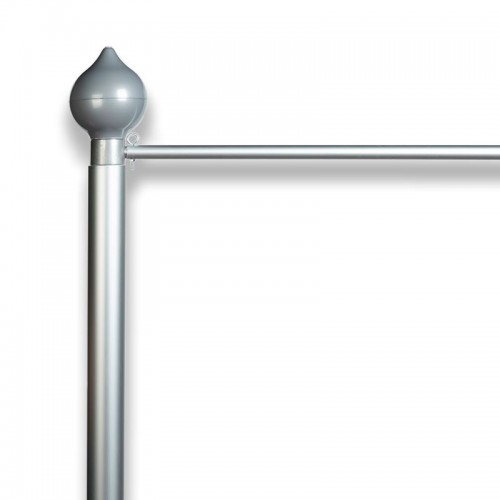

- Finial. End piece placed on top of the pole for an aesthetic finish. Onion-shaped, plastic, in silver-grey colour. Its size is 14 cm high and 14 cm diameter in the central area.

- Cleat. Already installed, made of durable white plastic, ideal for securing the halyard. Its design allows the rope to be wound safely and neatly, preventing tangling

Weight

Approximately 17 kg.

Colours

The main components are in silver-grey or metallic colour.

Accessory parts come in a grey finish.

Other

Outdoor use.

Assembly difficulty: Medium (less than approx. 15–20 minutes)

For installation, we recommend using concrete foundations.

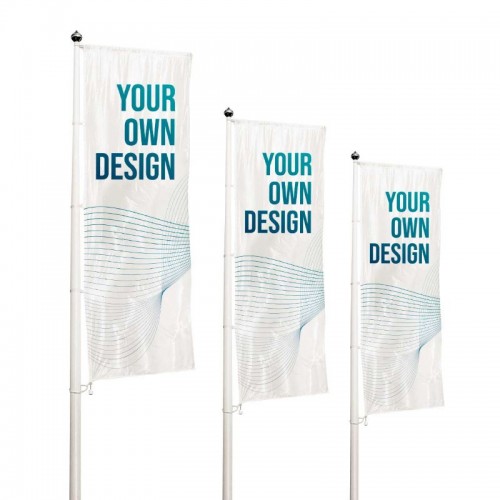

Recommended flag: Flag with grommets
