8-metrski aluminijasti oglasni drog

vertical_align_bottom Navodila za sestavljanje vertical_align_bottom Tehni?ne specifikacije
  1. Ukrep
    1M
    1,2M
    1,5M
  2. Izberite koli?ino
  4. Cene (Brezpla?en prevoz)

    Cene so na voljo izklju?no za registrirane distributerje

8-metrski aluminijasti oglasni drog

Glavna značilnost oglaševalnega droga je, da ima električno roko, ki omogoča, da se oglasni transparent v celoti navpično razvije, kar poveča njegovo vidnost. Z impresivno višino 8 metrov vam bo naš drog omogočil impresiven prikaz vaših oglasnih sporočil. Pritegnite poglede potencialnih strank in ustvarite večjo prepoznavnost blagovne znamke s tem močnim promocijskim medijem.

Vsebina

Oglaševalski jambor ima vse, kar potrebujete za namestitev in montažo, vključno z:

  • Anodiziran aluminijast jambor.
  • Trikotna pocinkana jeklena osnova.
  • Vključena dodatna oprema (vrtljivi sistem, protiutež in prirobnica)
  • Zastava ni vključena.

Dimenzija jambora

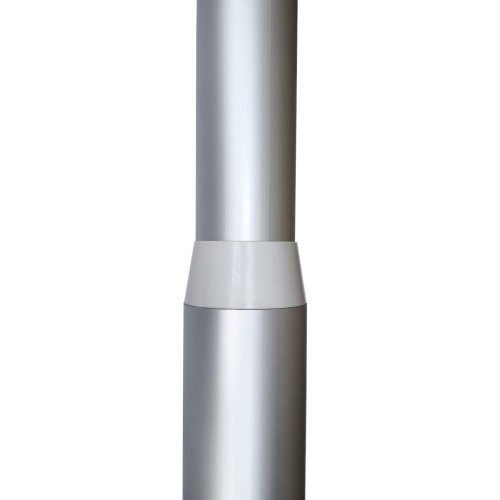

Stolp je visok 8 metrov. Sestavljen je iz treh aluminijastih delov, ki so med seboj vodotesno povezani.

Spodnji del je visok 2660 mm, premera 80 mm in debeline 2,5 mm. Srednji del je visok 3000 mm, premera 65 mm in debeline 2,5 mm. Višina zgornjega dela je 2930 mm, premer 50 mm in debelina 2 mm. Dimenzije električnih ročic

Na voljo v treh dolžinah: 1, 1,2 in 1,5 m, premer 2,5 cm in debelina 1,5 mm.

Dodatki za jambor

Dodatki institucionalnega droga so vključeni, vendar jih lahko po želji kupite ločeno (električna roka z vrtljivim sistemom, protiutež, prirobnica in vrhnji del droga). Za čim boljšo uporabo tega drogov za zastavo priporočamo vertikalno oglaševalsko zastavo s podstavki in trakovi ter vertikalno zastavo s podstavki in ušesi.

Features

Description

Materials

Anodised aluminium with performance parameters PN-EN 755-2, 6063T66 with corrosion protection Al/An 15 µm class 3.

Measures

Mast (3 sections):


 Height   Diameter  Thickness
 Complete Mast  8000 mm - -
 Lower section  2660 mm 80 mm 2,5 mm
 Middle section   3000 mm  65 mm 2,5 mm
 Upper section   2930 mm  50 mm 2 mm

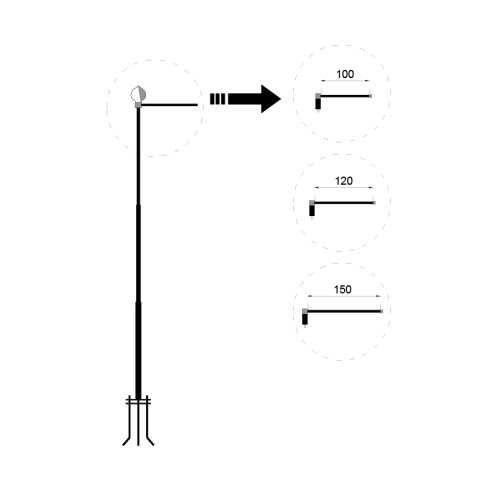

Power arm:



Aluminium alloy section on which the flag is held vertically at the top. Length: 1, 1.2 or 1.5 m.

With a diameter of 2.5 cm and a thickness of 1.5 mm.

Available in three sizes: 1 metre, 1.2 metres or 1.5 metres.

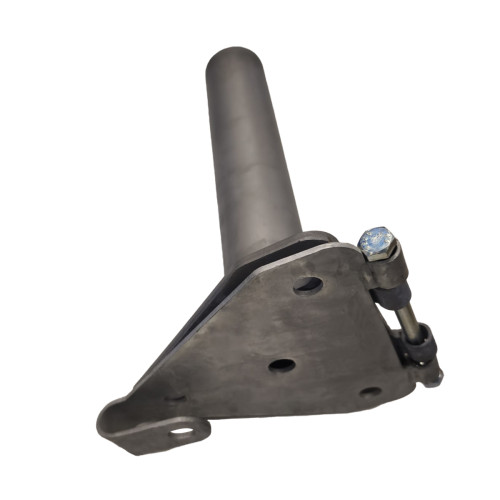

Triangular base:



Triangular iron base with 3 ground anchor bolts 50 cm long and 1.5 cm in diameter. It has a hinge so that the flagpole can be folded down and the flag can be easily installed.

Included accessories

This vertical flagpole is supplied with all parts required for assembly included in the price. These include the following accessories:

- Swivel system (with power arm): Mechanism for the power arm to swivel on the mast. Already installed on the upper section of the pole, it has a pin to connect the power arm and in turn hook the flag eyelet to fix it at this point.

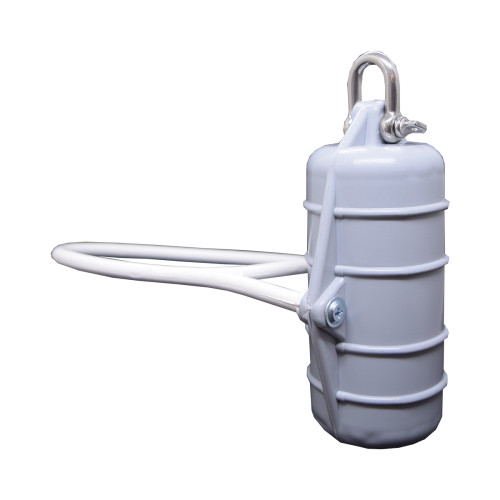

- Flange weight. To be placed on the lower part of the flag. It prevents the flag from blowing upwards in the wind and also holds it to the flagpole so that it does not move sideways.

Due to its material and shape, it does not hit directly against the flagpole, avoiding knocks and noise. Weight: 0,7 kg.

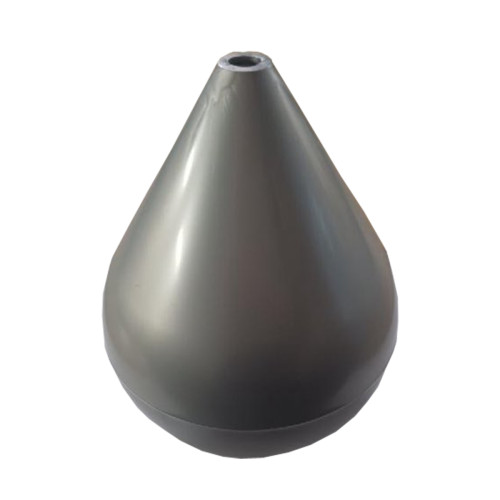

- Pinnacle. Piece to finish off the end of the mast and add aesthetics. It has an onion shape, it is made of plastic in silver grey colour. Its size is 14 cm in height and 14 cm in diameter in the central part.

Weight

Approximately 17 kg.

Colours

The main elements are silver-grey or metallic grey in colour.



The accessory parts have a grey plastic finish.

Uses/Other
  • Recommended for outdoor use.

  • It is of medium difficulty to assemble. It requires between 15 and 20 minutes approx.

  • For installation we recommend the use of concrete footings.

  • Concreting and installation are not included.

Complements not included

Recommended flags (not included):



-Vertical flags.

-Flags for advertising.
