6-metrski Institucionalni aluminijasti jambor

vertical_align_bottom Navodila za sestavljanje vertical_align_bottom Tehni?ne specifikacije
  1. Izberite koli?ino
  2. Cene (Brezpla?en prevoz)

    Cene so na voljo izklju?no za registrirane distributerje

6-metrski Institucionalni aluminijasti jambor

Glavna značilnost oglaševalnega droga je, da ima električno roko, ki omogoča, da se oglasni transparent v celoti navpično razvije, kar poveča njegovo vidnost. Z impresivno višino 8 metrov vam bo naš drog omogočil impresiven prikaz vaših oglasnih sporočil. Pritegnite poglede potencialnih strank in ustvarite večjo prepoznavnost blagovne znamke s tem močnim promocijskim medijem.

Vsebina

Oglaševalski jambor ima vse, kar potrebujete za namestitev in montažo, vključno z:

  • Anodiziran aluminijast jambor.
  • Trikotna pocinkana jeklena osnova.
  • Vključena dodatna oprema (vrtljivi sistem, protiutež in prirobnica)
  • Zastava ni vključena.

Dimenzija jambora

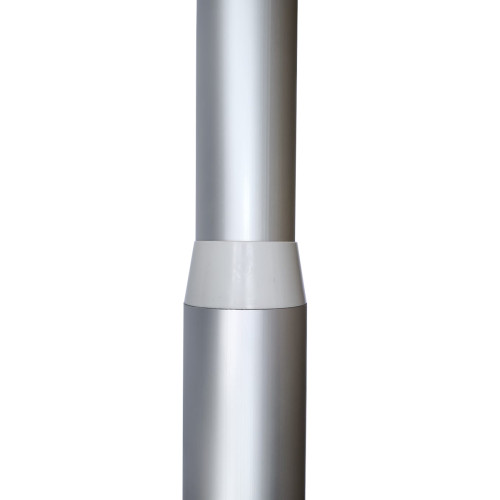

Stolp je visok 8 metrov. Sestavljen je iz treh aluminijastih delov, ki so med seboj vodotesno povezani.

Spodnji del je visok 2660 mm, premera 80 mm in debeline 2,5 mm. Srednji del je visok 3000 mm, premera 65 mm in debeline 2,5 mm. Višina zgornjega dela je 2930 mm, premer 50 mm in debelina 2 mm. Dimenzije električnih ročic

Dodatki za jambor

Dodatki institucionalnega droga so vključeni, vendar jih lahko po želji kupite ločeno (električna roka z vrtljivim sistemom, protiutež, prirobnica in vrhnji del droga). Za čim boljšo uporabo tega drogov za zastavo priporočamo vertikalno oglaševalsko zastavo s podstavki in trakovi ter vertikalno zastavo s podstavki in ušesi.

Features

Description

Materials

Anodised aluminium with performance parameters PN-EN 755-2, 6063T66 with corrosion protection Al/An 15 µm class 3.

Measures

Mast (3 sections):


 Height   Diameter  Thickness
 Complete Mast  8000 mm - -
 Lower section  2660 mm 80 mm 2,5 mm
 Middle section   3000 mm  65 mm 2,5 mm
 Upper section   2930 mm  50 mm 2 mm






Triangular base:

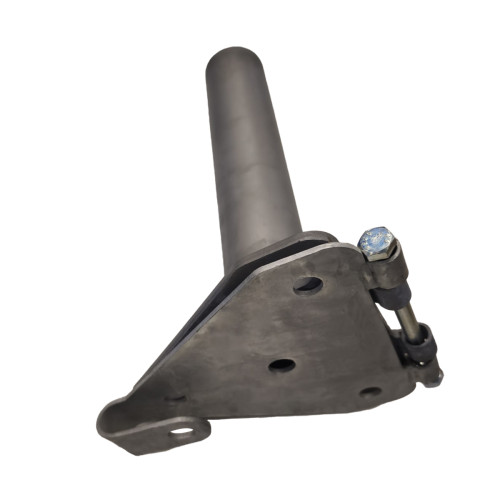

Triangular iron base with 3 ground anchor bolts 50 cm long and 1.5 cm in diameter. It has a hinge so that the flagpole can be folded down and the flag can be easily installed.

Included accessories

- Rope.

Made of nylon in white. Weather resistant. Length between 16 and 20 metres.

- Halyard system.

Mechanism that allows the flag to be raised by pulling on the rope. Already installed in the upper section of the flag, it has a thread to which the pinnacle is screwed.

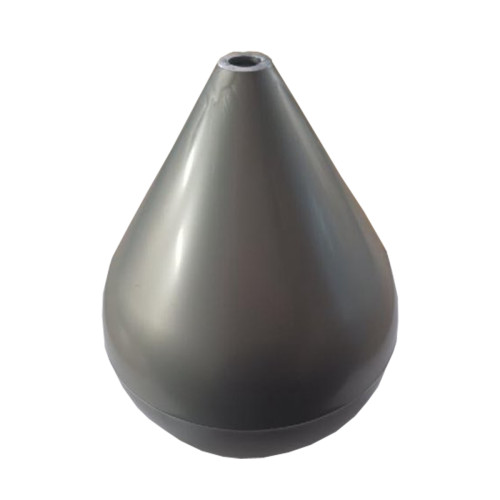

- Pinnacle. Part used to finish off the end of the flagpole and add aesthetics to it. It is onion-shaped and made of silver-grey plastic. Its size is 14 cm in height and 14 cm in diameter in the central part.

- Cleats. Already installed, made of resistant white plastic, ideal for securing the lifting rope. Its design allows the rope to be wound up in a safe and orderly way, preventing it from getting loose and tangled.

Weight

Approximately 17 kg.

Colours

The main elements are silver-grey or metallic grey in colour.



The accessory parts have a grey plastic finish.

Uses/Other
  • Recommended for outdoor use.

  • It is of medium difficulty to assemble. It requires between 15 and 20 minutes approx.

  • For installation we recommend the use of concrete footings.

  • Concreting and installation are not included.

Complements not included

Recommended flags (not included):



-Horizontal flags.
