8-Meter Aluminum Institutional Mast

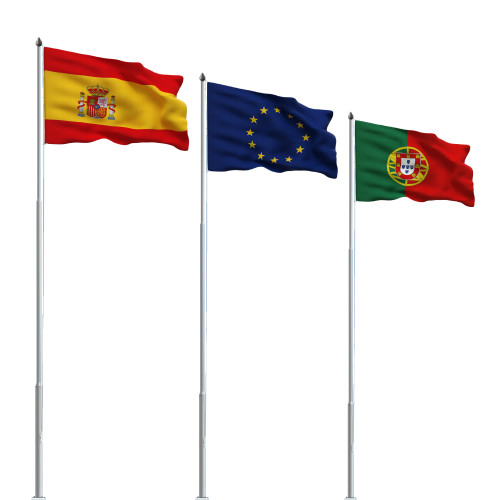

The institutional mast is the strongest and tallest in our stock (8 meters). It is recommended for outdoor use due to its resistance to weather conditions. It is made of aluminium and, thanks to its system at the base, it can be dismantled, folded down and collected to change the flag or protect it from strong gales.

Content

The institutional flagpole has everything necessary for its installation and assembly, including:

  • Anodised aluminium mast.
  • Triangular galvanised steel base.
  • Included accessories (cleat, halyard system, rope and pinnacle)
  • Flag not included.

Mast Dimensions

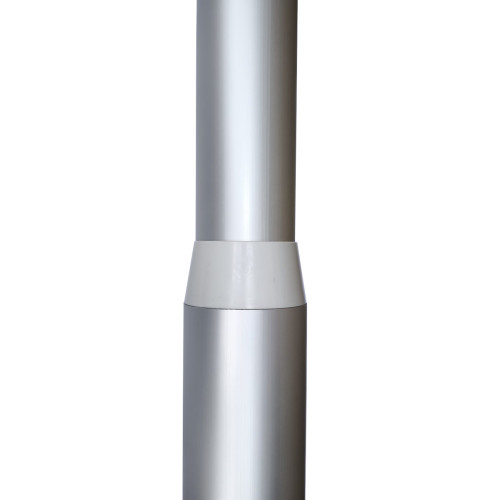

The mast has a height of 8 metres. It consists of three aluminium sections joined together in a watertight manner.

The lower section has a height of 2660 mm, a diameter of 80 mm and a thickness of 2.5 mm. The middle section has a height of 3000 mm, a diameter of 65 mm and a thickness of 2.5 mm. The upper section has a height of 2930 mm, a diameter of 50 mm and a thickness of 2 mm.



Mast Accessories

The institutional mast accessories are included, but can be purchased separately.

Feature

Description

Composition

Anodized aluminium with performance parameters PN-EN 755-2, 6063T66 with Al/An 15 µm class 3 anti-corrosion protection.

Dimensions

Pole (3 sections):

Height Diameter Thickness
Complete pole 8000 mm - -
Bottom section 2660 mm 80 mm 2.5 mm
Middle section 3000 mm 65 mm 2.5 mm
Top section 2930 mm 50 mm 2 mm

Triangular base:

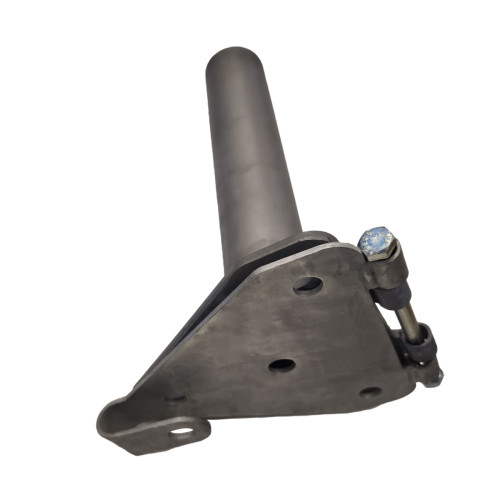

Triangular iron base with 3 ground anchoring bolts, 50 cm long and 1.5 cm in diameter. It includes a hinge allowing the pole to be lowered for easy installation of the flag.

Included accessories

This horizontal flagpole comes with all the parts needed for assembly, included in the price. These accessories include:

- Rope. White nylon, weather resistant. Length between 16 and 20 metres.

- Halyard system. Mechanism that allows the flag to be hoisted by pulling the rope. Already installed in the top section, it includes a thread where the finial is screwed in.

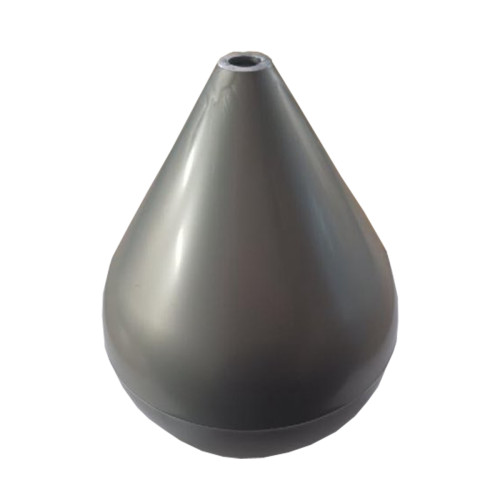

- Finial. End piece placed on top of the pole for an aesthetic finish. Onion-shaped, plastic, in silver-grey colour. Its size is 14 cm high and 14 cm diameter in the central area.

- Cleat. Already installed, made of durable white plastic, ideal for securing the halyard. Its design allows the rope to be wound safely and neatly, preventing tangling

Weight

Approximately 17 kg.

Colours

The main components are in silver-grey or metallic colour.

Accessory parts come in a grey finish.

Other

Outdoor use.

Assembly difficulty: Medium (less than approx. 15–20 minutes)

For installation, we recommend using concrete foundations.

Recommended flag: Flag with grommets

To install this pole, we recommend mounting it on a concrete foundation. Here are brief instructions on how to do it: Concrete foundation instructions.
