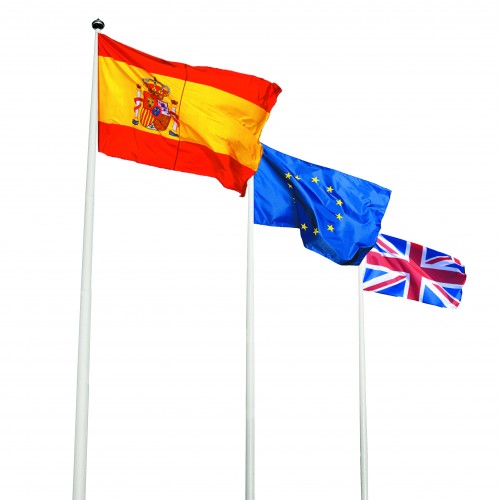

6-metrski Institucionalni aluminijasti jambor

Naš institucionalni jambor je najmočnejši in najvišji na naši zalogi. Zaradi odpornosti na vremenske razmere je priporočljiv za uporabo na prostem. Izdelan je iz aluminija, zaradi sistema podlage pa ga je mogoče razstaviti, zložiti in dvigniti, da bi zamenjali zastavo ali jo zaščitili pred močnim viharjem.

Vsebina

Institucionalni jambor ima vse potrebno za namestitev in montažo, vključno z:

  • Anodiziran aluminijast jambor.
  • Trikotna pocinkana jeklena podlaga.
  • Vključena dodatna oprema (cepin, vodilo za vrv in pinakelj)
  • Institucionalna zastava (ni vključena)

Dimenzija jambora

Stolp imavišino 6 metrov in premer 6,5 cm. Sestavljen je iz dveh aluminijastih delov, ki sta med seboj vodotesno povezana.

Feature

Description

Composition

Anodized aluminum with performance parameters PN-EN 755-2, 6063T66 with corrosion protection Al/An 15 µm class 3.

Dimensions

Pole (2 sections):


Height Diameter Thickness
Full pole 6000 mm - -
Lower section 3300 mm 65 mm 2.5 mm
Upper section 3000 mm 50 mm 2 mm

Triangular base:

Triangular iron base with 3 ground anchor bolts, each 50 cm long and 1.5 cm in diameter. It includes a hinge that allows the pole to be tilted, making it easier to install the flag.

Included accessories

This pole for horizontal flags comes with all the necessary parts for assembly included in the price. These include the following accessories:



- Rope. White nylon. Weather-resistant. Length between 16 and 20 meters.

- Halyard system. Mechanism that allows the flag to be raised by pulling the rope. Already installed in the upper section, it has a threaded top where the finial is screwed in.

- Finial. Piece that finishes the top of the pole and adds aesthetics. It has an onion shape and is made of silver-gray plastic. Its size is 14 cm in height and 14 cm in diameter at the center.

- Cleat. Already installed, made of durable white plastic, ideal for securing the hoisting rope. Its design allows the rope to be wrapped safely and neatly, preventing tangling



Weight

20 kg, approximately.

Colors

The main elements are silver-gray or metallic in color.



Accessory parts have a white plastic finish.

Materials

Pole made of anodized aluminum with a thickness of 2.5 mm.



It is made up of 2 anodized aluminum sections joined in a

airtight way. The cleat is located 1.5 meters from the base of the pole.



The base is oven-galvanized steel.

Color

Metallic silver gray.

Uses/Others
  • Recommended for outdoor use.

  • Assembly difficulty is medium. Requires approximately 15–20 minutes.


  • Concrete setting and installation are not included.

Accessories not included

Recommended flags (not included):



- Institutional flags.

- Horizontal flags.
