3x3m Gazebo

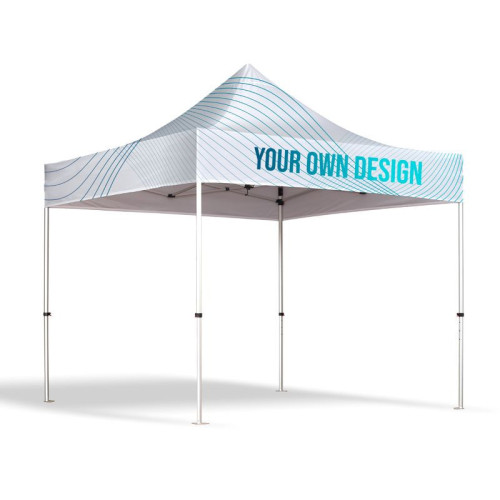

3 x 3 m Gazebo. The design of the fabrics of our gazebos can be 100% customised on the outside of the gazebo. It is possible to design the roof, the four side skirts and the four possible walls (sold separately) with the colours or images of your customers' choice. This way it is possible to reuse the structure and change the fabric cover for other occasions. The entire gazebo structure is waterproof and is designed to fold down into a small volume for easy storage.

As our gazebos can be folded and customised, they can be easily transported to all kinds of events. They can be set up in a very short time and very easily.

The frame of the advertising gazebo is made up of an articulated framework of hexagonal aluminium tubes, matt metallic grey in colour and joined together by means of nylon joints. This composition gives them great durability and, at the same time, lightness.

Pack Contents

Ádivin's event gazebos consist of a pack made up of:

  • Aluminium structure.
  • Textile cover (roof and skirt).
  • Complements necessary for assembly (such as, for example, the Velcro fasteners between the textile surfaces and the legs).

You can choose between two types of fabric for its manufacture:

  • Flag fabric 115 g/m².
  • 250 g/m² waterproof gazebo fabric.

Gazebo dimensions

Type Height Length Width
Gazebo 340 cm  300 cm  300 cm
Stowed gazebo 126 cm 26 cm  26 cm

You can buy the gazebo in a complete pack at such a low price because we sell it 100% online exclusively to sign makers and distributorss and your customer can have it the next day because we manufacture and deliver it within 24 hours.

* This product can feature personalised labels.

Features

Description

Dimensions

Total height of the assembled gazebo: 340 cm.



Total width of the assembled gazebo: 300 cm.



Total length of the assembled gazebo: 300 cm.



Size of the stowed gazebo: 156x26x26 cm.

Structure

The structure of the gazebo consists of hexagonally shaped aluminium sections.



Dimensions and characteristics of the sections:



  • Feet/legs: 4 legs made of 40 mm x 40 mm hexagons with a thickness of 1.2 mm.

  • Internal roof structure: composed of a series of 13x26 mm cross bars, with a thickness of 1.1 mm and an internal reinforcement made of black hardened plastic.

The height of the unfolded legs is 240 cm.

Cover

It includes the roof or dome and the skirt that covers the perimeter of the metal structure.



The roof can be made of one of the following fabrics:

  • 100% polyester fabric 115 g/m².
  • Waterproof fabric 100% polyester 250 g/m².

Both have the following characteristics:



  • Weaving: 50% weft and 50% warp.
  • 100% polyester multifilament 3-strand yarn.
  • Double stitched with special thread for outdoor use.
  • Double hem with a width of 10 mm.
  • 7 mm symmetrical double stitching (1.5 mm from the edges).
  • Stitch width: 5 mm.
  • It is particularly water and air resistant, colourfast and washable.
  • Anti-pollution surface treatment.

Weight

Variable depending on the type of fabric chosen.

Fabric type

Approximate weight

115 g/m² flag fabric

17,5 kg

250 g/m² waterproof fabric

20 kg

Colour and design

The colour of the gazebo fabric is customisable, as are the designs.

The internal structure is metallic grey.

The colour of the structure's joints is black.

Printing

115 g/m² - Inkjet sublimation printing in CMYK (four-colour process) on one side with 96% colour transfer using official inks.

250 g/m² - UV-cured and cured printing, one side, with official inks.

Complements (not included)

The following items can be purchased separately to complete the gazebo assembly:

- Complete wall.

- Counter wall.

- Window wall.

- Door wall.

- Carrying gazebo case.

- Tent bases, which help to give more stability to the whole structure.

- Pack Fly Banners Feather and Drop with gazebo base.

- Banners on the gazebo legs.

Uses

The gazebos are suitable for both indoor and outdoor use.

With the roof already installed on the structure, the gazebo is easy to unfold, taking less than 10 minutes to complete.

Once folded, it stands out for its small volume, which makes it easy to store and transport.
